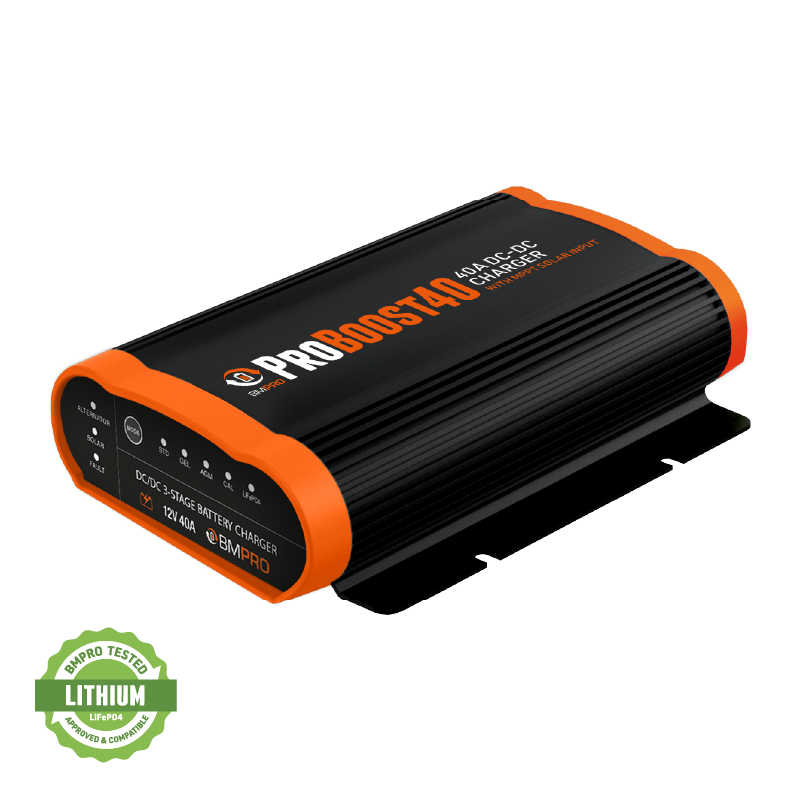

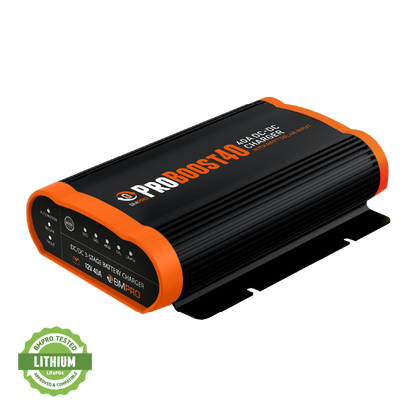

Pro Boost 40A lithium DC–DC charger with solar input

KEY FEATURES

• Dual input MPPT solar/aux (alternator)
• Multi-battery chemistry selector
• IP56 rating – resistant to dust, water & shock damage
• Maintains a 100% state of charge of auxiliary batteries
• Suitable for under-bonnet installation

BMPRO’s ProBoost40 is a DC-DC battery charger that allows you to charge a secondary battery using solar panels and/or a towing vehicle’s 12V electrical system.

The ProBoost40 utilises solar and auxiliary inputs to produce a maximum of 40A which ensures there is a consistent charge to your battery.

Compatible with both lead-acid and lithium LiFePO4 batteries, the high power density design of the ProBoost40 provides efficiency of up to 95%.

The ProBoost40 has an ultra-thin design, making it suitable for installation in small spaces, and is resilient to shaking, as well as wet, dusty or muddy environments.

A range of protective features built into the ProBoost40, such as overtemperature, overvoltage and undervoltage protection, will guard your charging capacity.

*The ProBoost is designed to work as a standalone product.

To use this with a BMPRO Power Management System, such as the BatteryPlus35-II or the J35, you will need to connect it through a PXShunt500 or BC300 External Shunt. For more details refer to this help guide.

Specifications

Input Voltage

9 – 32V

Solar Input Voltage

10 – 32V

Maximum Input Current

47A

Input Fuse Rating

60A

Solar Input Watts

800W

Maximum Output Current

40A

Output Fuse Rating

60A

Minimum Start Voltage (Lead-Acid)

4V

Minimum Start Voltage (LiFePO4)

0V

Standby Current

<10mA

Battery Type

STD, Gel, AGM, Calcium, LiFePO4

Operating Temperature

-20°C to 80°C

IP Rating

IP56

Dimensions

183mm x 130mm x 43mm

Charge Type

3-Stage

Maximum Voltage (STD)

14.4V

Maximum Voltage (Gel)

14.1V

Maximum Voltage (AGM)

14.7V

Maximum Voltage (Calcium)

15.3V

Maximum Voltage (LiFePO4)

14.5V

Float Voltage (STD)

13.4V

Float Voltage (Gel)

13.5V

Float Voltage (AGM)

13.4V

Float Voltage (Calcium)

13.6V

Float Voltage (LiFePO4)

13.6V

Turn On Input (Standard Alternator)

>13.1V

Turn On Input (Smart Alternator)

>12.0V

Turn Off Input (Standard Alternator)

<12.8V

Turn Off Input (Smart Alternator)

<11.8V
