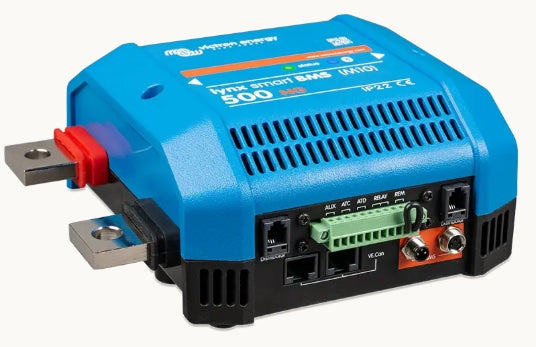

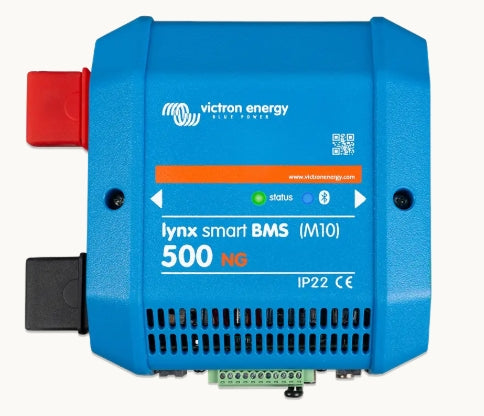

Lynx Smart BMS NG - 500A - M10

Manage and monitor your Victron Lithium NG battery system with the Victron Lynx Smart BMS 500 NG (M10).

Combining battery management, monitoring and safety controls in one unit, it’s suited to caravan, motorhome, marine and off-grid installations using compatible Victron Lithium NG batteries.

Key features

• Built-in 500A contactor: Provides backup safety protection and remote-controlled main system switching.

• Battery monitoring: View battery state of charge and essential system information.

• Bluetooth connectivity: Set up, monitor and diagnose your system using the VictronConnect app.

• Low-voltage pre-alarm: Warns before system shutdown due to low battery cell voltage.

• Local and remote monitoring: Connect to a compatible Victron GX device, such as the Cerbo GX, for monitoring and access through the VRM portal.

• M10 busbar connections: Integrates with compatible Victron Lynx M10 distribution components.

• 12V, 24V and 48V systems: Supports compatible Lithium NG battery configurations.

Compatibility: Specifically designed for Victron Lithium NG batteries. Not compatible with the earlier Victron Lithium Battery Smart range.
