Caravan RV - RJ45 Recessed Data Socket for Starlink

Includes:

1 X Wall Plate

1 X IP68 Bulkhead Socket with Cable Gland

3 (for Round) 4 (for Square) X Stainless Steel Screws

3 X RJ45 Plugs for 24AWG cable (1 extra incase you muck it up)

Note: No Backing Plate Included, Click Here for included Backing Plate.

This Bulkhead mounting plate with IP68 rated Data socket is designed for ease of Starlink Setup when you arrive at your destination.

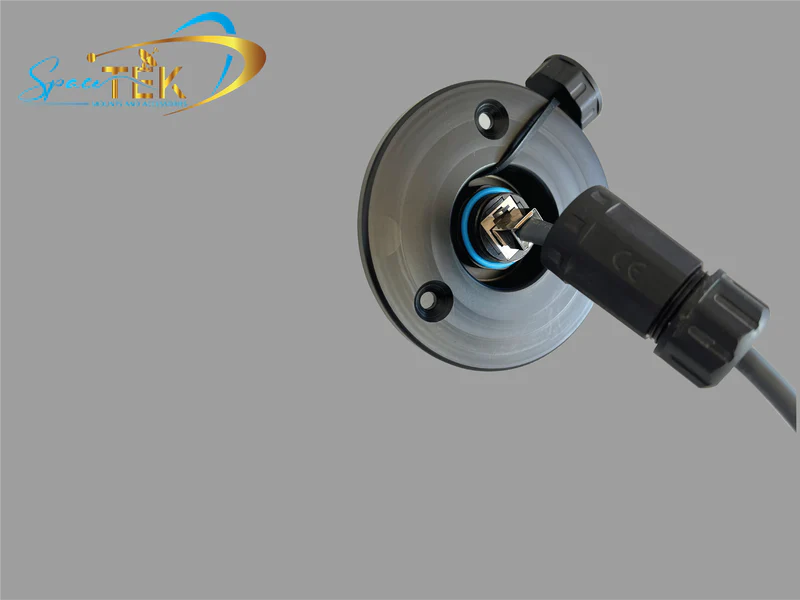

With a simple modification to your Starlink Cable you have simply remove the waterproof cap and connect your Starlink to the outside of your Caravan or Motorhome whilst maintaining an IP68 Waterproof Rating.

The back side requires a 51mm hole which can be easily cut with a hole saw and then sealed with a light ring of silicone using the screws.

The Starlink Cable will need to be cut and modified with RJ45 Cat6A Plugs.

SpaceTek offer a Modification Service or you can DIY this yourself by watching This Video.

We Recommend following the T-568B Termination Standard.

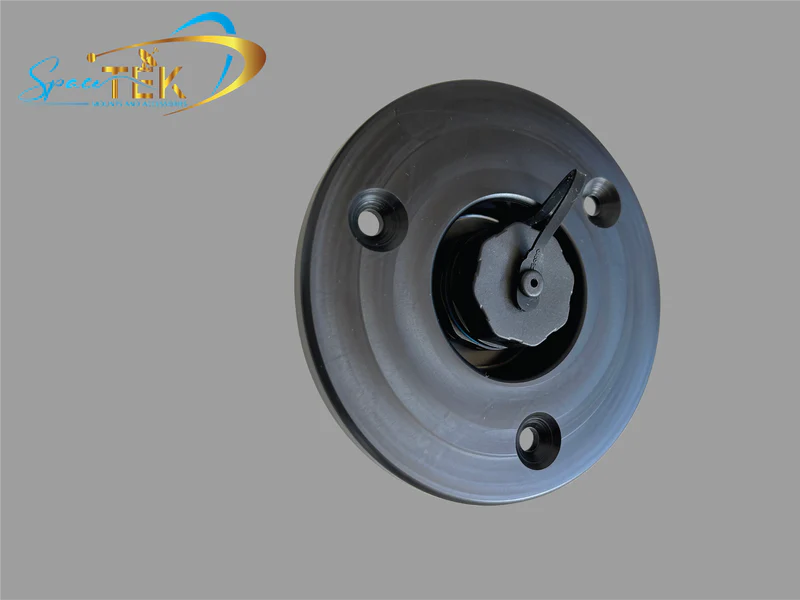

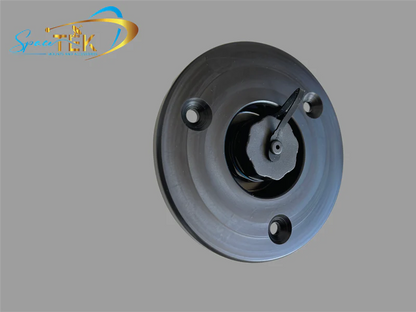

The outer face of the round version measures 95mm.

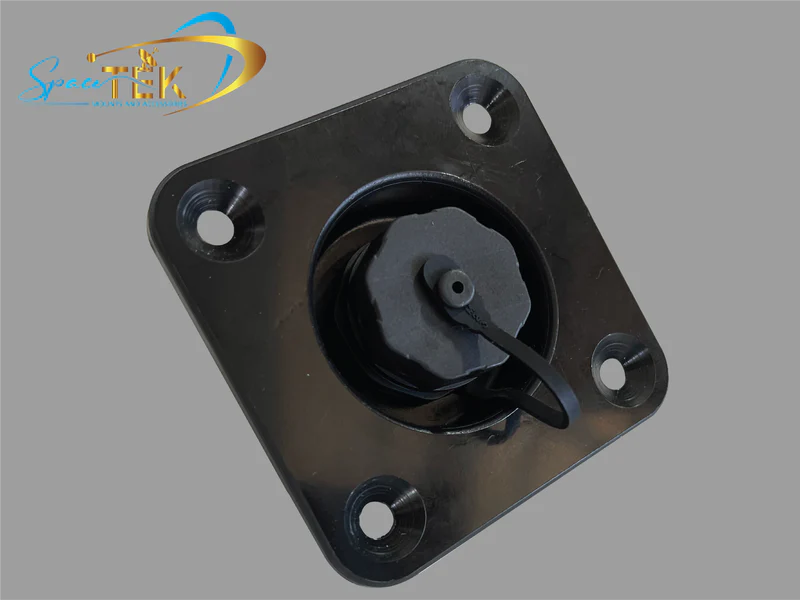

The outer face of the square version measures 70x70mm
