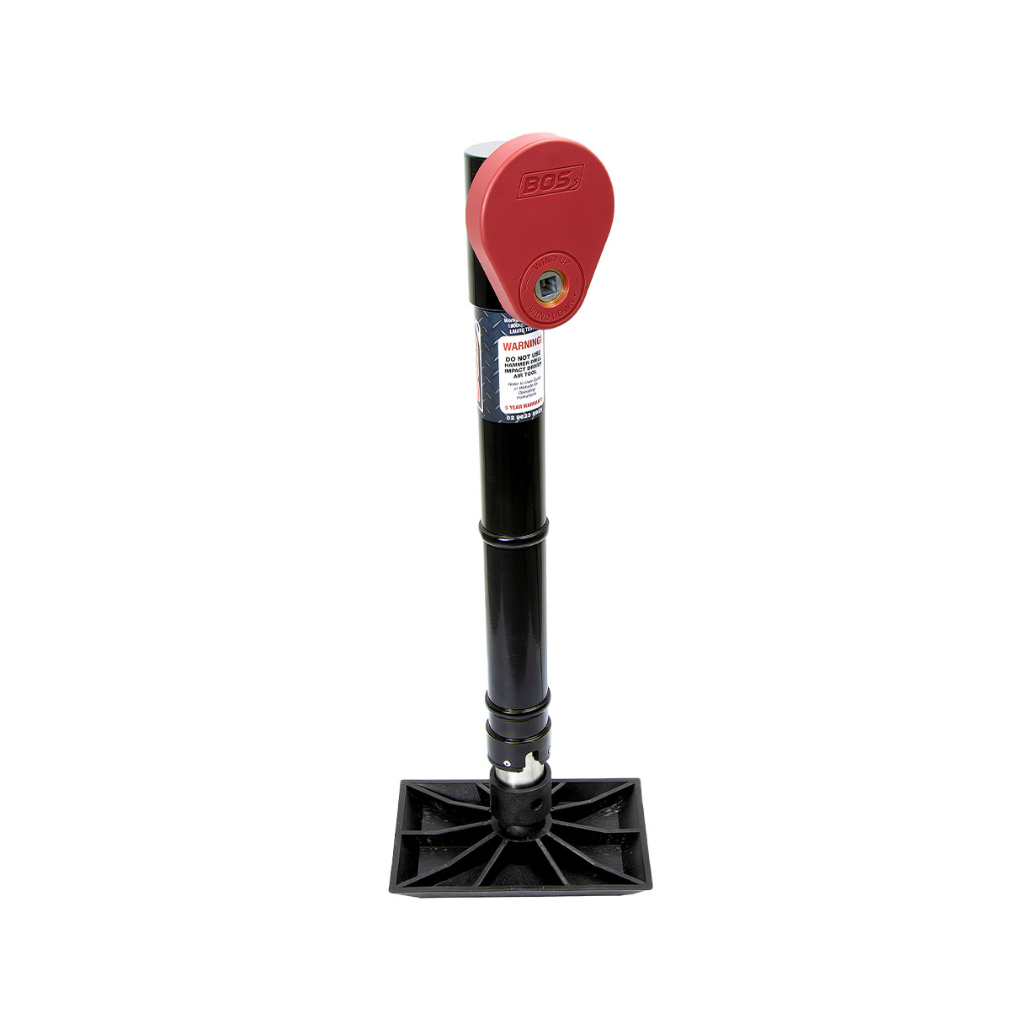

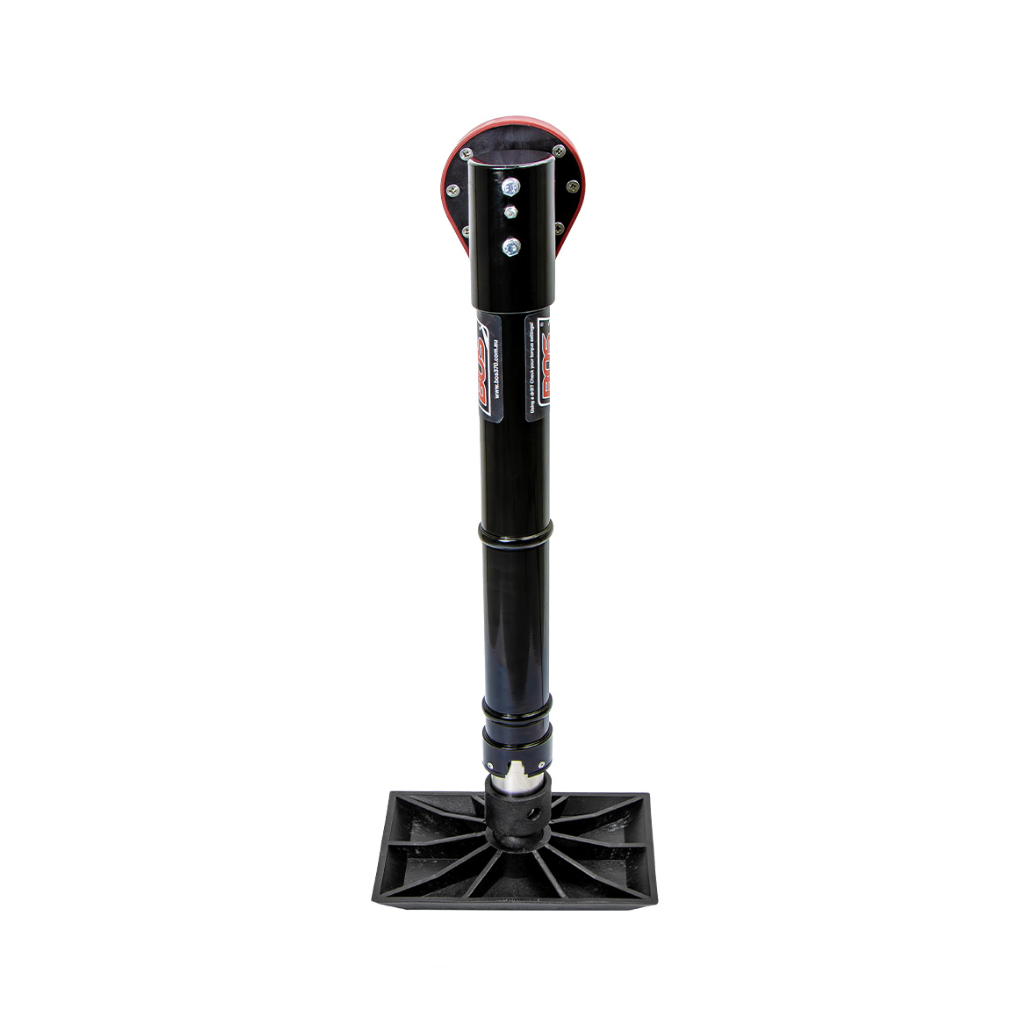

BOS 572-003 2 Rib Side Winder Jockey Unit. The BOS 572-003 2 Rib Side Winder Jockey Unit is a great option for those looking for an easy-to-use Jockey Unit that is also easy to store. This jockey unit is designed to fit most 50mm clamp systems, and includes a 360×30 degree swivel base plate that adjusts to uneven ground. BOS also offers a wide range of quality wheel options, so you can find the perfect jockey wheel for your needs. Use your drill to drive our jockey wheels, stabiliser legs and caravan movers – travel made easy!
FEATURES AND BENEFITS:
Fits into your existing 50mm clamp.
Patented BOS Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup.
LMATS Tested up to 1800kg in a rigid clamp setup.
350mm Extended travel.
Unit can be left on while traveling, locking it in with medium clutch setting and the BOS traveling strap.
The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel.
120mm Pipe extension when extra height is needed.
BOS 572-003 2 Rib Side Winder Jockey Unit Key Features, Dimensions and What’s Included,click here.
SPECIFICATIONS:
Dimensions Maximum Extension with Base Plate 916 mm (H)
Premium textured black powder coated – CNC machined outer pipe from heavy walled pipe
Articulated base plate – unique ball joint design is great for uneven ground up to 30 degrees

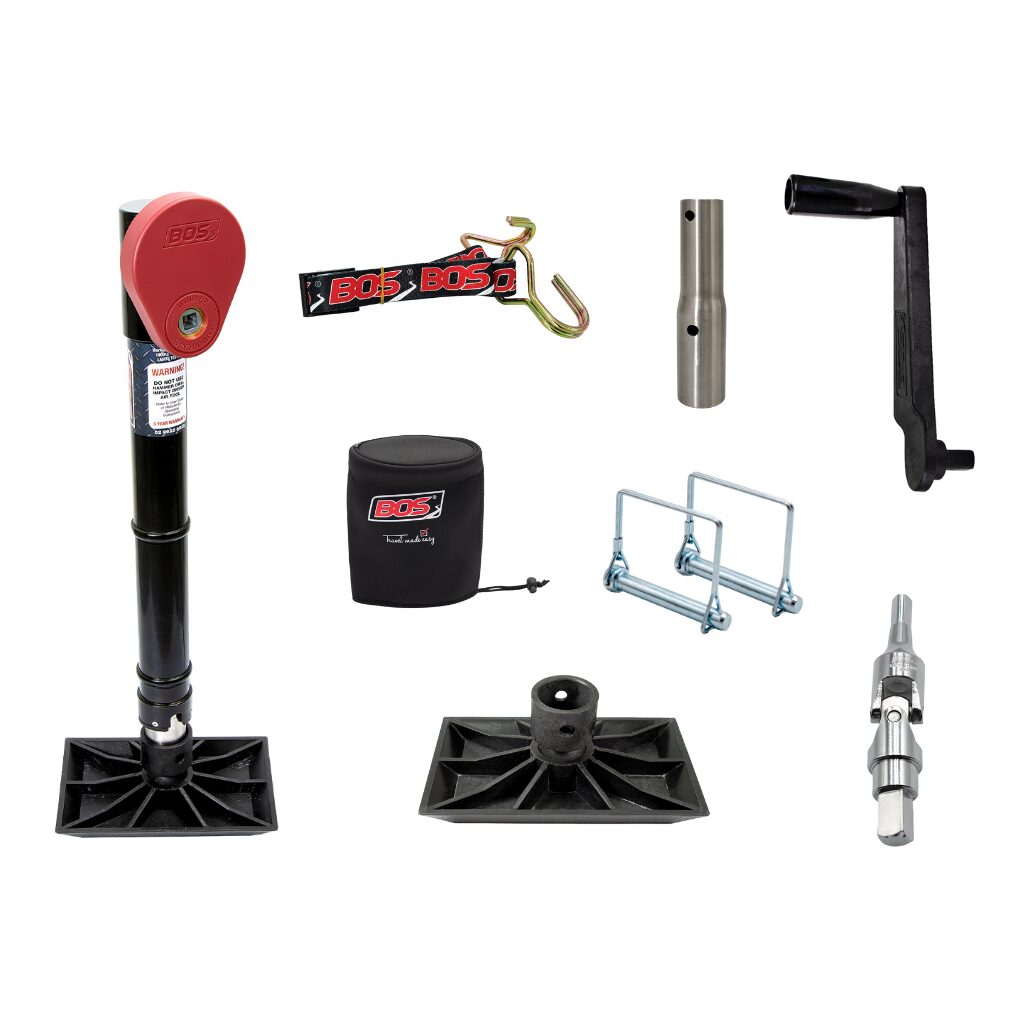

WHAT IS INCLUDED:
1 x BOS 572-003 2 Rib Side Winder Jockey Unit
1x 370-STRAP Travel Strap
1x 020-026 Stainless Steel Extension 120mm
1x 020-007 12mm Drill Drive Piece
1x 020-003 Manual Handle 12mm
1x 020-037 Jockey Weather Cover
1x 010-062 Articulated Base Plate
2x 020-018 Quick Release Pin
IMPORTANT INFORMATION:
