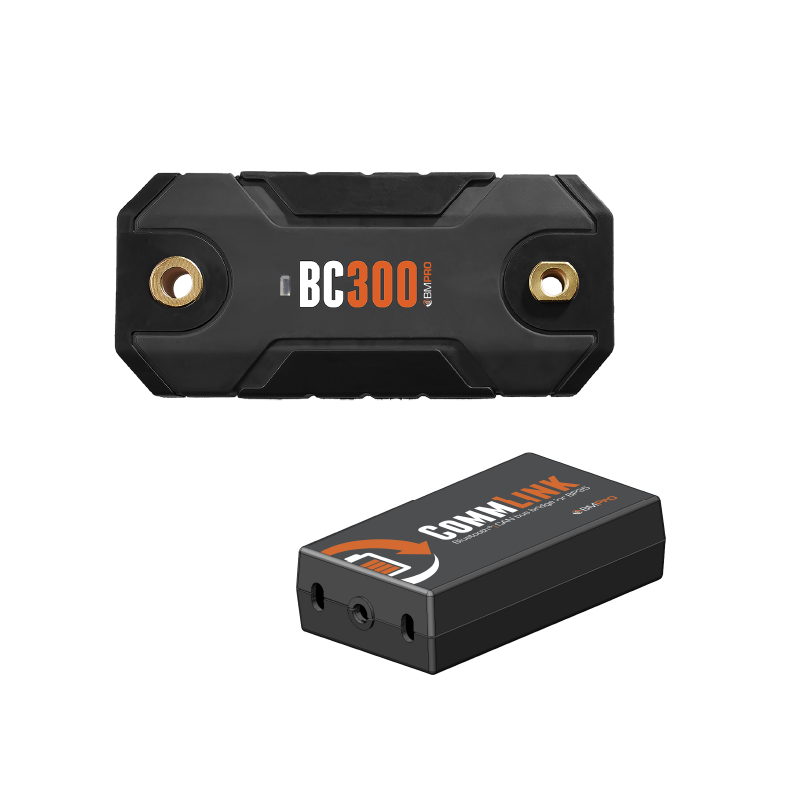

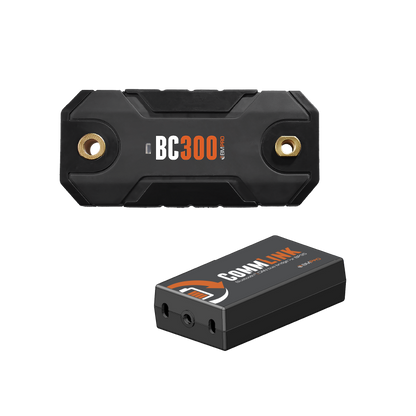

BC300 + CommLink

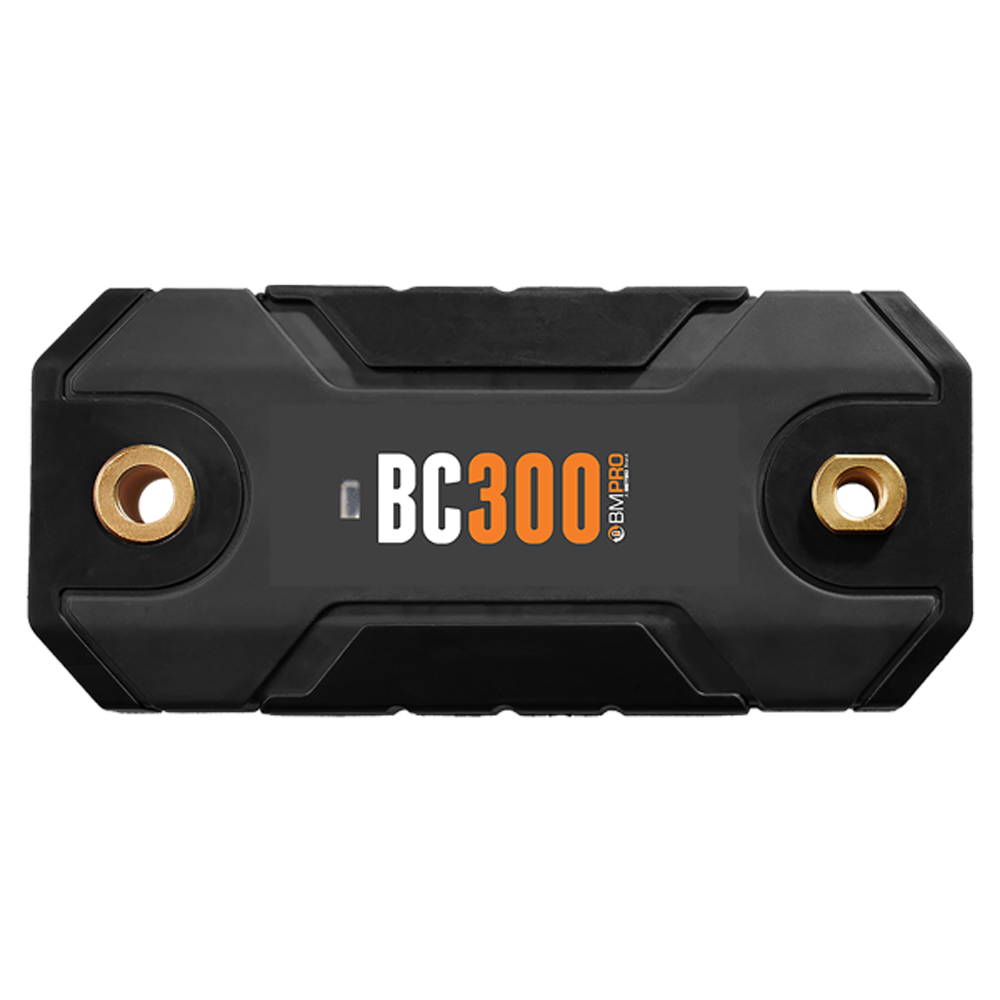

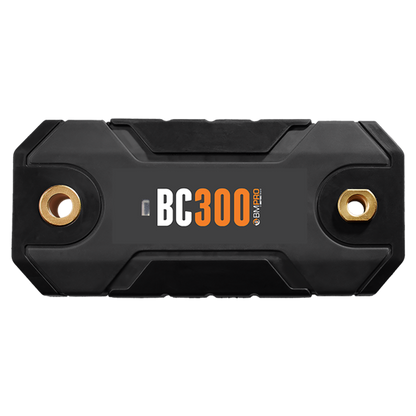

300A External Shunt

KEY FEATURES

• High current/external charge monitoring
• Wireless Bluetooth communication to Commlink – easy to install/retrofit
• DIY installation and simple pairing procedure
• Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery properties monitored:

• Voltage
• Current (charging/discharging)
• Energy usage (Ah)
• Temperature (not displayed)

Monitor all connections direct to battery

The BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 Power Management Systems, connecting directly to battery via the BC300 External Shunt. This enhances system behaviour with temperature monitoring of the battery for greater protection.

The addition of the BC300 to the BatteryPlus35 and J35 Power Management Systems allows high current loads and external charge sources.

The BC300 also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.

The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus. The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity. The shunt is rated for ±240A constant and 300A peak.

Specifications

Battery Monitoring

Voltage Range

8V to 16V

Voltage Resolution

<20mV

Current Resolution

<200mA

Current Range

240A continuous

Overload Protection

± 800A (100ms without damage)

Temperature Range

-20°C to 70°C (battery terminal)

Temperature Resolution

3°C

Capacity Range

7 to 800Ah

BC300 External Shunt

Input Voltage

8V to 16V

Quiescent Current Drain (average)

<10mV

Operating Temperature

-20°C to 70°C

Humidity Operating

≤ 85% RH non-condensing

Humidity Non-operating

≤ 95% RH non-condensing

Dimensions (Approx.)

140mm x 65mm x 18.6mm

Weight (Approx.)

1kg

IP Rating

IP54

CommLink

Input Voltage

8V to 16V

Quiescent Current Drain (average)

<20mV

Operating Temperature

-20°C to 70°C

Humidity Operating

≤ 85% RH non-condensing

Humidity Non-operating

≤ 95% RH non-condensing

Dimensions (Approx.)

92mm x 52mm x 25mm

Weight (Approx.)

150g

IP Rating

IP304
