Specifications:
High quality UV resistant protection.
Easy to install, convenient disassembly.
Using excellent raw materials, the power consumption is lower.

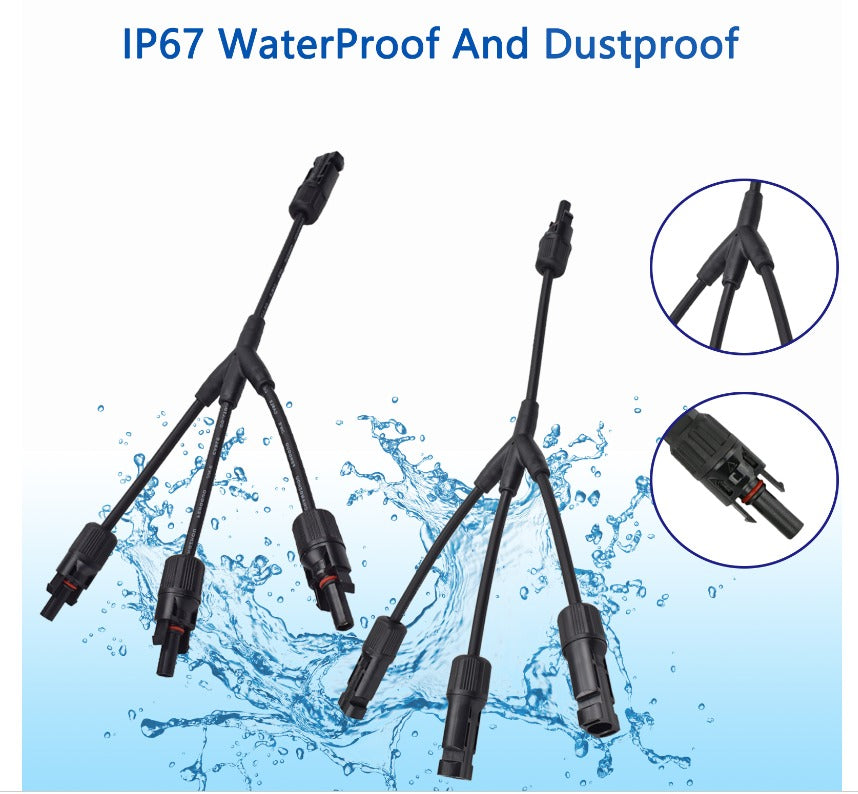

IP 67 protection when mated.
Snap fit locking arrangement for security closure.

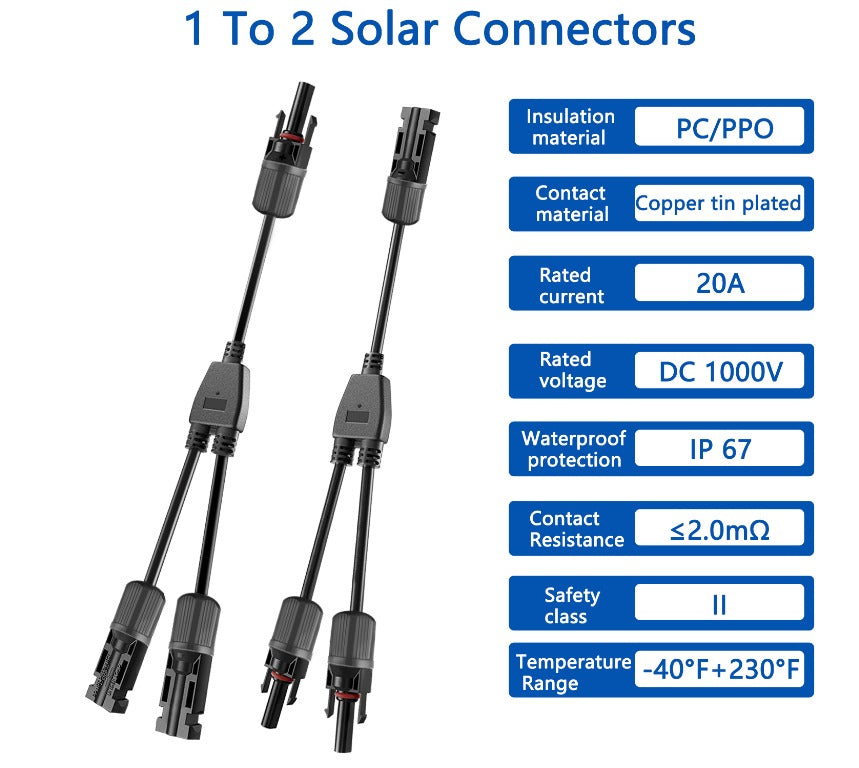

Type: for MC4 Solar Pannel M/FFF Cable
Material: PPO, Copper
Max Working Voltage: 1000V DC
Max Current Rate: 20A(4mm² ), 30A(6mm² )
Contact Resistance: ≤0.5mΩ
Insertion Force: ≤50N
Withdrawal Force: ≥50N
Flame Class: UL94-V0
Degree of Protection: IP67
Ambient Temperature Range: -40~+105 Degrees Celsius
Features: Easy to Install, UV Resistant, Plug& Play

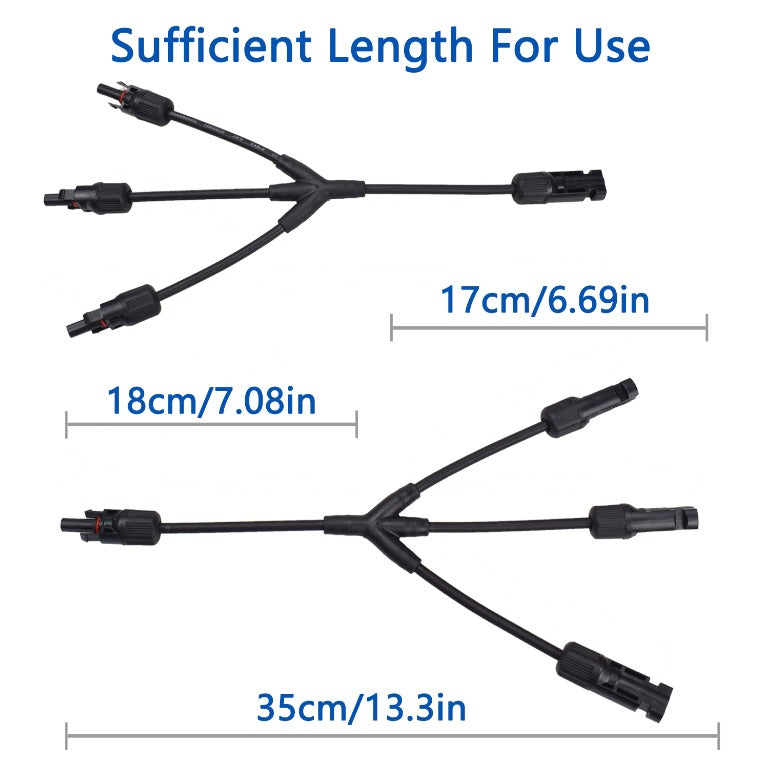

Size: 320mm x 160mm x 20mm/12.59" x 6.29" x 0.79" (Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Included:
1 x for MC4 Solar Pannel M/FFF Cable
1 x for MC4 Solar Pannel F/MMM Cable
High quality UV resistant protection.
Easy to install, convenient disassembly.
Using excellent raw materials, the power consumption is lower.
IP 67 protection when mated.
Snap fit locking arrangement for security closure.
Type: for MC4 Solar Pannel M/FFF Cable
Material: PPO, Copper
Max Working Voltage: 1000V DC
Max Current Rate: 20A(4mm² ), 30A(6mm² )
Contact Resistance: ≤0.5mΩ
Insertion Force: ≤50N
Withdrawal Force: ≥50N
Flame Class: UL94-V0
Degree of Protection: IP67
Ambient Temperature Range: -40~+105 Degrees Celsius
Features: Easy to Install, UV Resistant, Plug& Play
Size: 320mm x 160mm x 20mm/12.59" x 6.29" x 0.79" (Approx.)
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Included:
1 x for MC4 Solar Pannel M/FFF Cable
1 x for MC4 Solar Pannel F/MMM Cable
