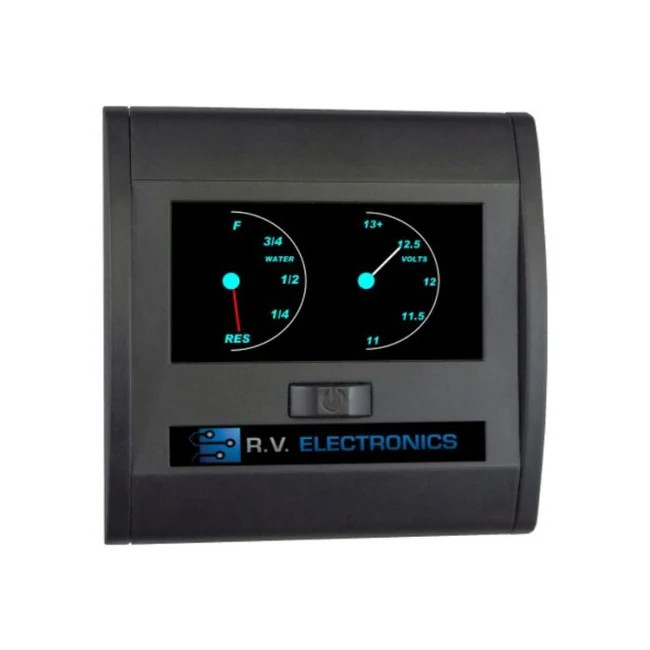

1 Water Level & 1 Battery Guage LCD

These new technology gauges have a coloured LCD analogue display with LED backlighting for crystal clear viewing. These gauges only draw 50 mA so they can be left on without flattening your on-board battery. There is a power on/off switch to turn the gauge.

Five levels are displayed.

A 12 volt supply is required. These gauges only draw 50 mA so they can be left on without flattening your on-board battery.

There is a power on/off switch to turn the gauge off when the caravan is not in use.

The gauges can be matched with 2.5 metre, 5 metre or 7.5 metre lead sender probes.

The LCD water gauge measures H108mm x W108mm x D20mm.

This easy to fit tank sender probe only requires one 22mm (7/8?) hole in the side of the tank and suits tanks from 100mm to 280mm (4? to 11?) deep. The sender probe is sealed by a special grommet which is compressed in the hole when the nut is tightened and measures the water level by contact with the 5 sensors along the arm. It has no moving parts.
